How to Detect and Remove Separated Disks During Veeam Agent for Linux Restore
Purpose
This article documents how to detect and clean up the restored disks of a Linux machine that used Logical Volume Manager (LVM), was backed up with Veeam Agent for Linux, and restored to a hypervisor VM or cloud computing platform.
This issue is documented in the following Veeam Agent for Linux user guide restore sections:
- Restore Veeam Agent backups to VMware vSphere VMs
- Restore Veeam Agent backups to Hyper-V VMs
- Restore Veeam Agent backups to Nutanix AHV VMs
- Restore Veeam Agent backups to Proxmox VE VMs
- Restore Veeam Agent backups to oVirt KVM VM
- Restore disks from Veeam Agent backups to oVirt KVM VM
- Restore data from Veeam Agent backups to Microsoft Azure
- Restore data from Veeam Agent backups to Amazon EC2
- Restore data from Veeam Agent backups to Google Compute Engine
Issue Summary
The following text is from the aforementioned Veeam Agent for Linux User Guide restore sections.
If the disk you want to restore contains an Logical Volume Manager (LVM) volume group (VG), consider the following:
- Since LVM volume group is a logical entity that spans across the physical disks, Veeam Agent treats the original disk and the LVM volume group as separate entities. Therefore, Veeam Backup & Replication will restore the original disk and the LVM volume group as 2 separate disks. This way, all data, including the data within the LVM volume group, is accurately restored.
- Restoring the original disk and the LVM volume groups as 2 separate disks requires an increased amount of storage space. For example, you restore a machine with 2 disks, and a separate LVM volume group is configured on each of these disks. In this case, Veeam Backup & Replication will restore 4 disks. The restored disks will consume the storage space equal to the size of the 2 original disks and the 2 LVM volume groups from these disks.
Challenge
Example Scenario
Initial Linux Machine Configuration Overview
- Disk sda: uses default partitioning for OS filesystems.
- Disks sdb and sdc: partitioned as sdb1 and sdc1 and used as Physical Volumes to create the pool for a Volume Group named vg00.
- Volume Group vg00: contains 2 logical volumes:
- lv_big: formatted as ext4
- lv_small: formatted as xfs
Commands to Review Disk Configuration
The following commands can be used to review the machine's disk configuration:
Command Output Examples From Scenario Machine
root@linux-agent-host:~# lsblk -fs NAME FSTYPE FSVER LABEL UUID FSAVAIL FSUSE% MOUNTPOINTS sda1 ext4 1.0 06522eee-d6c7-48ec-bb21-bacd2aa2806b 10.9G 21% / `-sda sda2 `-sda sda5 swap 1 415c86a1-4b25-4d64-8250-9d3084a95623 [SWAP] `-sda sr0 vg00-lv_big ext4 1.0 2a038489-a343-413c-88cd-7b458a9c43d7 9.2G 0% /big |-sdb1 LVM2_member LVM2 001 82fr31-JedF-sQlA-ZIha-S27n-xXq6-EetU5C | `-sdb `-sdc1 LVM2_member LVM2 001 xnQ2CB-vufG-21Sq-h6yZ-mURX-jnV9-zIB3ce `-sdc vg00-lv_small xfs 1f7b4748-9380-4e09-8a0c-dc9dbf51b878 2.9G 2% /small `-sdb1 LVM2_member LVM2 001 82fr31-JedF-sQlA-ZIha-S27n-xXq6-EetU5C `-sdb root@linux-agent-host:~# blkid /dev/mapper/vg00-lv_small: UUID="1f7b4748-9380-4e09-8a0c-dc9dbf51b878" BLOCK_SIZE="512" TYPE="xfs" /dev/sdb1: UUID="82fr31-JedF-sQlA-ZIha-S27n-xXq6-EetU5C" TYPE="LVM2_member" PARTUUID="9ca89108-01" /dev/mapper/vg00-lv_big: UUID="2a038489-a343-413c-88cd-7b458a9c43d7" BLOCK_SIZE="4096" TYPE="ext4" /dev/sdc1: UUID="xnQ2CB-vufG-21Sq-h6yZ-mURX-jnV9-zIB3ce" TYPE="LVM2_member" PARTUUID="8e1b0552-01" /dev/sda5: UUID="415c86a1-4b25-4d64-8250-9d3084a95623" TYPE="swap" PARTUUID="38687d75-05" /dev/sda1: UUID="06522eee-d6c7-48ec-bb21-bacd2aa2806b" BLOCK_SIZE="4096" TYPE="ext4" PARTUUID="38687d75-01" root@linux-agent-host:~# vgs; lvs VG #PV #LV #SN Attr VSize VFree vg00 2 2 0 wz--n- 13.99g 1016.00m LV VG Attr LSize Pool Origin Data% Meta% Move Log Cpy%Sync Convert lv_big vg00 -wi-ao---- 10.00g lv_small vg00 -wi-ao---- 3.00g root@linux-agent-host:~# df -hT Filesystem Type Size Used Avail Use% Mounted on udev devtmpfs 2.9G 0 2.9G 0% /dev tmpfs tmpfs 593M 736K 592M 1% /run /dev/sda1 ext4 15G 3.1G 11G 22% / tmpfs tmpfs 2.9G 4.0K 2.9G 1% /dev/shm tmpfs tmpfs 5.0M 0 5.0M 0% /run/lock tmpfs tmpfs 593M 0 593M 0% /run/user/0 /dev/mapper/vg00-lv_big ext4 9.8G 5.4G 3.9G 59% /big /dev/mapper/vg00-lv_small xfs 3.0G 2.1G 955M 69% /small
Solution
Post-Restore Configuration Review
After performing the restore, review the restored VM's disk layout. You'll notice that in addition to the original disks, there will be new a disk for each of the VGs (Volume Groups) that is equal in size to the combination of all LVs (Logical Volumes) in each VG from the original Linux machine.

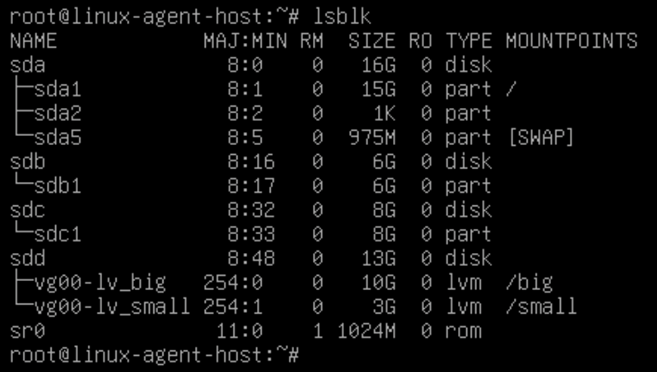

Example Restored VM Configuration
- Disk sda is restored as is.
- Disks sdb and sdc are restored, and their partitions (sdb1 and sdc1) are present.
- Disk sdd is new, and is sized to match the combined size of all LVs within the VG.
- The logical volumes lv_big and lv_small are mounted as expected.
Note: If there are multiple disks with the same size, use the command lsscsi to identify the SCSI nodes assigned to each disk and then correlate those to the VM configuration.
Example:
# lsscsi [0:0:0:0] disk VMware Virtual disk 2.0 /dev/sda [0:0:1:0] disk VMware Virtual disk 2.0 /dev/sdb [0:0:2:0] disk VMware Virtual disk 2.0 /dev/sdc [0:0:3:0] disk VMware Virtual disk 2.0 /dev/sdd

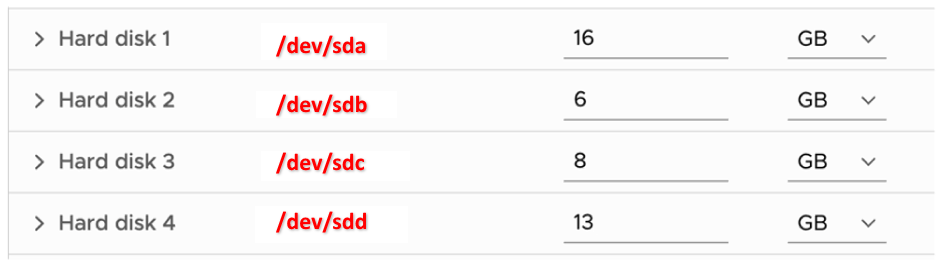

Based on this, we can see that /dev/sdd is SCSI node 0:3, which correlates to the following VM disk:
Detaching Unused Disks and Repairing LVM VG
After powering on the restored VM, attempting to execute any LVM commands results in warnings like:
WARNING: PV /dev/sdd in VG vg00 is using an old PV header, modify the VG to update. WARNING: Device /dev/sdd has size of 27265024 sectors which is smaller than corresponding PV size of 13959692288 sectors. Was device resized? WARNING: One or more devices used as PVs in VG vg00 have changed sizes.
Part 1: Detach the Unused Disks
These steps continue with the prior example of working with a Linux machine restored to a vSphere VM. You will need to adapt these steps when restoring to other hypervisors or cloud computing platforms.
After identifying which VM disks represent the unused disks, in the ongoing example, sbd and sdc, perform the following to detach them from the VM:
- Power of the restored VM.
- Edit the VM in a vSphere Client.

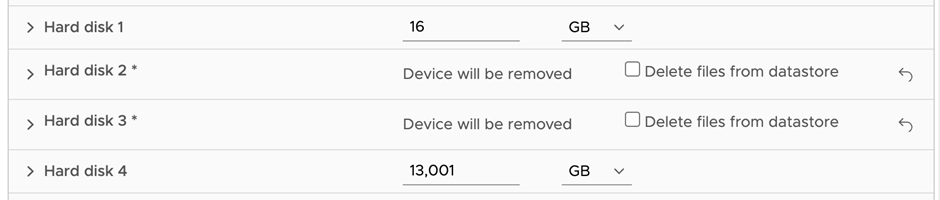

- Remove disks, but don't delete the disks.
- Save the new settings of the VM and start it.

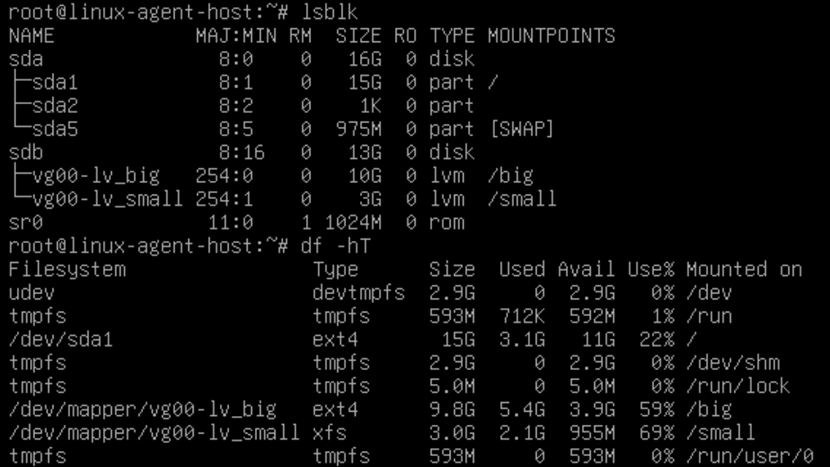

- Review the disk configuration and ensure that the filesystems are mounted properly using:
Note that sdd is now listed as sdb.
Part 2: Clean Up LVM Errors
WARNING: PV /dev/sdb in VG vg00 is using an old PV header, modify the VG to update
- To resolve this first warning, excute the following command replacing the vg00 with the actual VG name.
WARNING: Device /dev/sdb has size of 27265024 sectors which is smaller than corresponding PV size of 13959692288 sectors. Was device resized? WARNING: One or more devices used as PVs in VG vg00 have changed sizes.
These warnings occur because the VG (vg00) was initially made from multiple PVs, and now only a single PV is present.
- Fix this by running the following command, specifying the correct device and sector count from the warning:
- The system should be rebooted to ensure all changes are committed.
- After reboot, ensure all volumes are mounted as expected.
- If everything is now functioning correctly with no further LVM warnings, the spare disks that were disconnected can be removed from the storage.
